Diaphragm seals, accessories

NUOVA FIMA

  • Diaphragm seal with threaded connection / for pressure gauges / process
  • Diaphragm seal with threaded connection / for pressure gauges / process
  • Diaphragm seal with threaded connection / for pressure gauges / process

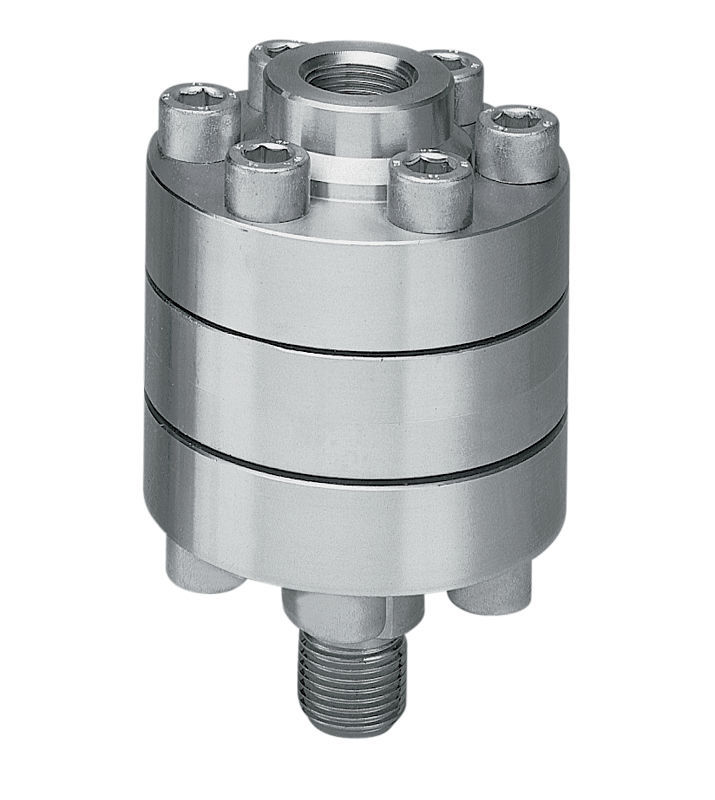

MGS9/1A

Article: 00037101

Diaphragm seal with threaded connection / for pressure gauges / process

Back side diaphragm seal for high pressure, with threaded connection

Diaphragm seals are designed to isolate the sensing element of pressure gauges, pressure switches and electronic pressure transmitter from process fluids which may be corrosive, viscous, sedimentous and/or with a high temperature. The diaphragm is mechanically clamped between the upper housing and intermediate ring and is leak proof tested to guarantee fill fluid separation from process fluid. Model MGS9/1A0 is cleaned by removing the lower housing from the intermediate ring. Both models are without sealing gaskets. This construction feature and its compact design suits many application that require frequent maintenance, for model MGS9/1A0.

Specifications

  • Installation system: with threaded connection
  • Other characteristics: for pressure gauges
  • Domain: process
  • Pressure: Min.: 0 bar (0 psi)

Other items

In this category | In this category, (NUOVA FIMA)
