Dispensing valves, metering valves

I.L.C. Srl

  • Volumetric dispensing valve
  • Volumetric dispensing valve
  • Volumetric dispensing valve
  • Volumetric dispensing valve
  • Volumetric dispensing valve
  • Volumetric dispensing valve

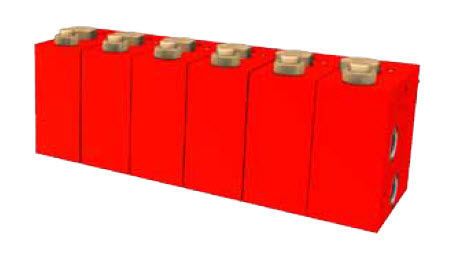

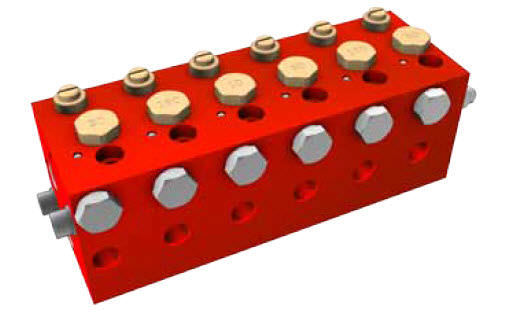

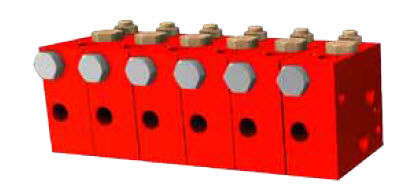

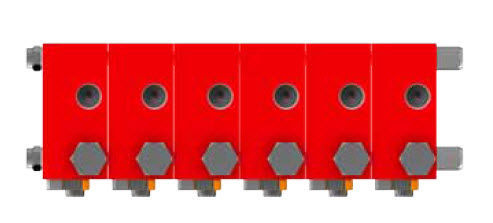

Mixer-3

Article: 00038339

Volumetric dispensing valve

These mixers 3 come equipped a volumetric valve, and are available with various discharges. The air pressure can be adjusted via a screw with a clamping ferrule site up the mixer. Every outlet comes with its own discharge also elements that can be assembled or used individually. To feed the Mixer -3 is enough connect so as to appropriate inlets air main lin and the oil main line. The pump can be either electric of pneumatic and it activates the Mixer-3 internal valve which allows the discharge of the preset oil quality towards the mixing chamber. The airflow takes the lubricant to the delivery location when the pump is in operation. Particles air oil reach lubrication points via tubes which is conveyed by the air.

Specifications
