Infrared cameras and scanners

New Infrared Technologies

  • Infrared camera / uncooled / IP67
  • Infrared camera / uncooled / IP67
  • Infrared camera / uncooled / IP67

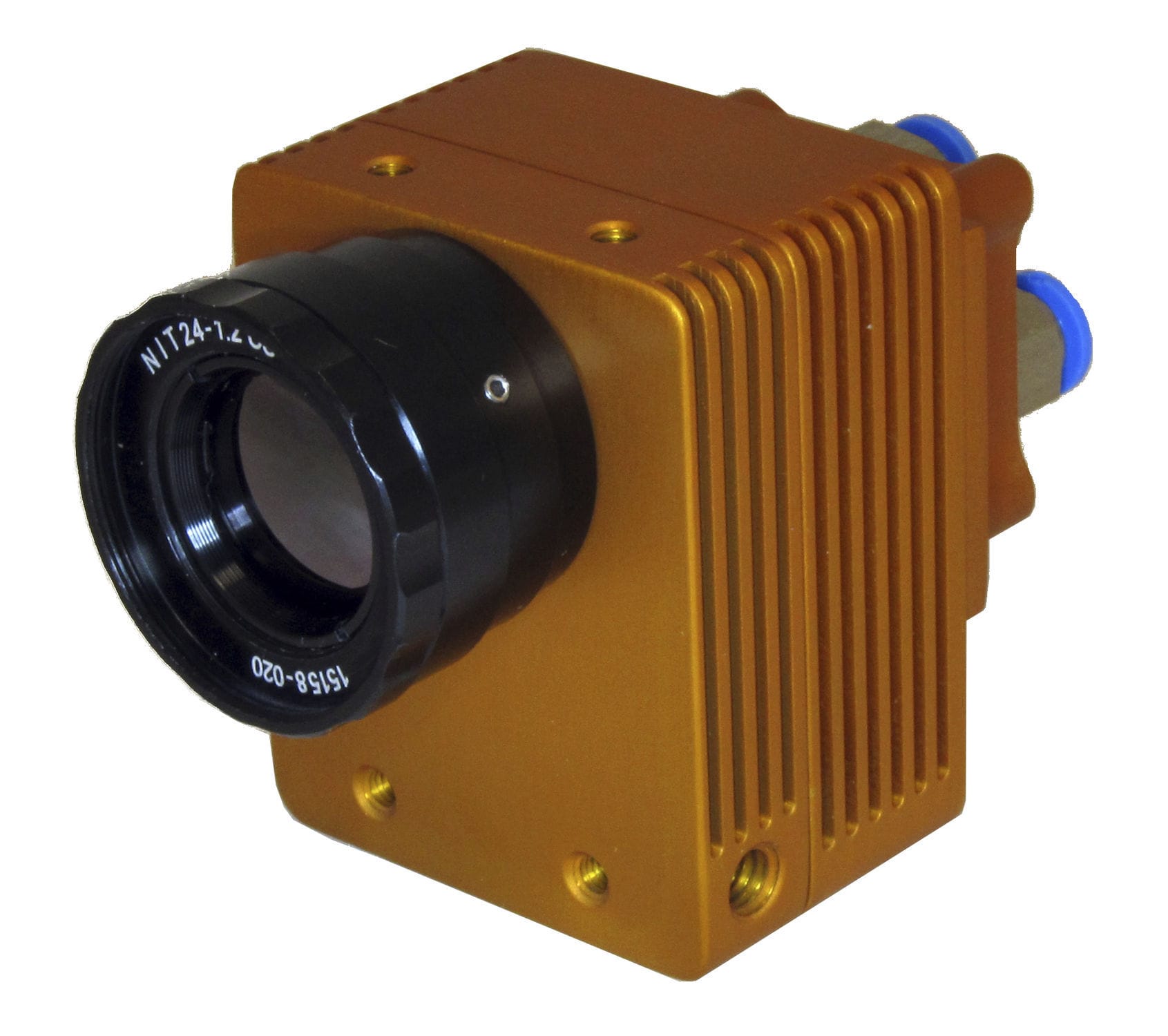

TACHYON 1024 microCAMERA

Article: 00068907

Infrared camera / uncooled / IP67

TACHYON 1024 microCAMERA

Uncooled MWIR camera, IP-67 rates and frame rate up to 1000 images per second

- Uncooled MWIR camera, IP-67 rated, with industrial M12 USB connector and frame rate up to 1000 images per second
- Miniaturized size, based in SWaP-C concept to ensure a perfect integration into the production process

Applications

Industrial manufacturing process control (welding, cutting, etc.)
Laser process monitoring
Gas and flame detection
Machine vision
OEM integration

Industries

Automotive industry
Home appliance manufacturing
Metallurgy and steel industry
Petrochemical industry


Main characteristics:

High-speed frame rate - High-frame rate up to 1000 Hz (slower speeds are possible using longer integration times)
USB communication - Communication interface: USB 2.0, high-speed (480 Mbps) with industrial connector M12
USB powered - Power: 5 VDC through USB connection
Shutter incorporated - Shutter incorporated for 1-pt offser correction
Lens included - Lens: f=24 mm, F#1.2, FoV 10.25ºx10.25º (IP-67)
DLL for custom software development - SDK library for C: available
Detection performance - Minimum temperature of detection: 100 ºC

Specifications

  • Spectrum: infrared
  • Other characteristics: IP67, uncooled
