• Modbus interface module / RS-232 / analog / industrial

accQcomm?

Article: 00063526

Modbus interface module / RS-232 / analog / industrial

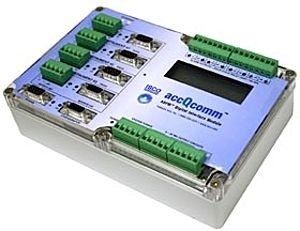

The accQcomm? digital/analog interface module accepts RS-232/RS-422 serial data from up to three Isco ADFM® flow meters (ADFM Pro20, Hot Tap, accQmin?, or H-ADFM) and converts the data into an industry-standard digital protocol (MODBUS or Ethernet) or industry-standard analog signal (4-20 mA). Either method allows easy interface with SCADA/DCS or other secondary control or data recording systems.

The module is wall or console mountable and is powered with 12 to 24 VDC.

Standard Features

Three serial inputs, RS232 or 422, for simultaneous integration of up to 3 different ADFM systems.
MODBUS or Ethernet interface for digital data access.
Four independent, galvanically isolated 4-20 mA analog outputs, programmable for any measured parameter.
Sums and averages of data from the three instruments selectable as an output.
Eight optically isolated relay outputs for issuing alarms based on user-defined conditions.

Applications

Provides real-time SCADA/DCS interface for applications in:
- Wastewater collection and treatment
- Stormwater collection and discharge
- Industrial process and treatment

Specifications

  • Bus: Modbus, RS-232
  • Options: analog, industrial, electronic
