Form And Surface Measuring Instruments

Mitutoyo

  • CNC shape and contour measuring machine
  • CNC shape and contour measuring machine

CV-3000CNC/CV-4000CNC series

Article: 00054337

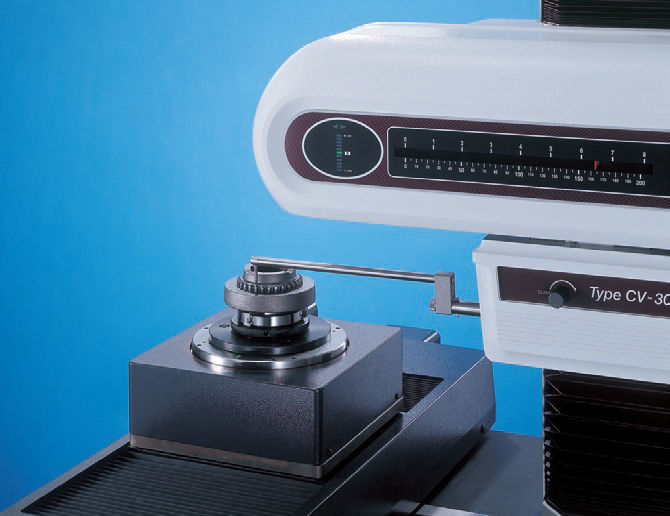

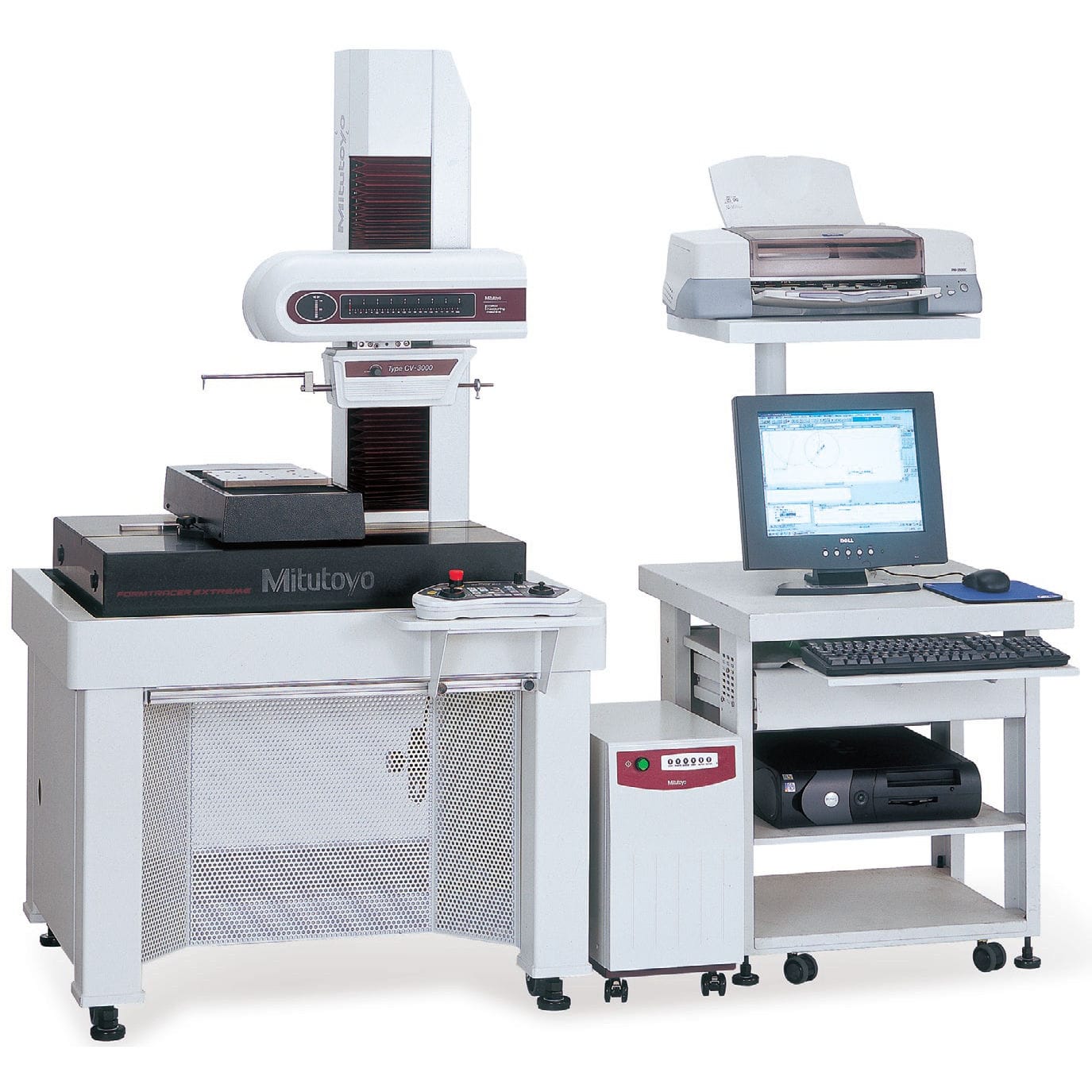

CNC shape and contour measuring machine

High-accuracy CNC contour/form measuring
instrument.
The X1-, Y- and Z2-axes have a maximum
drivespeed of 200mm/s.
This permits high-speed positioning that can
potentially result in a large increase in the
throughput of multiple-profile / multipleworkpiece
measurement tasks.
For models with the ? axis, it is possible
to perform continuous measurement over
horizontal and inclined surfaces by powertilting
the X1 axis.
For models with the Y-axis table, it is possible
to expand the measuring range for multiple
workpieces, etc., through positioning in the
Y axis direction.
It also enables inclined plane measurements
through 2-axis simultaneous control in the X
and Y directions.
Since the Z1-axis detector incorporates an
anti-collision safety device, the machine will
automatically stop if the detector touches a
workpiece or jig.
Optional external control function (Ext I/O)
through bidirectional communication (RS-
232C) with the PLC (programmable logic
controller) is available.

Specifications

Other items
