Form and surface measuring instruments

Cyber Technologies

  • Non-contact profilometer

VANTAGE 50

Article: 00054451

Non-contact profilometer

Cost-effective profilometer and 3D scanning solution
Integrated motion system with 50 mm travel
User friendly concept
Sophisticated analysis and automation software

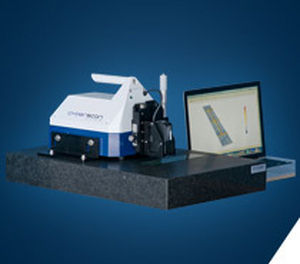

The cyberSCAN VANTAGE 50 is a compact, non-contact profiling system for fast scanning of any part or surface. The system combines a laser sensor, a base unit with an integrated translation stage and a PC or a laptop for data analysis. The sensor scans over the object and produces a high-resolution height profile. The confocal laser sensor can also produce a scan line with the width of 1.1 mm and a lateral resolution of 2 µm. In combination with the translation stage a highly accurate 3D raster can be recorded.
Technology

Integrated y-stage with sensor mount
50 mm travel in y-direction, lateral resolution 0.05 µm
Laser confocal or triangulation sensors
Resolution down to 0.01 µm, measurement range up to 8 mm
3D Line-scan capabilities (laser confocal sensor) with 1.1 mm width and 2 µm lateral resolution
Integrated on-axis camera, visible laser spot inside the camera field of view

Specifications

  • Options: non-contact
