350 x 200 mm | SB600

Article: 00054470

Tool measuring machine

Description :

This measuring system is dedicated to strawberries discs (3 sizes strawberries, strawberries saws ...) and can control the following :
Cutting geometry
Concentricity and flatness
Microcracks

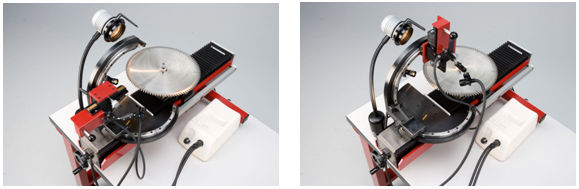

The camera can be oriented in three different positions. In one clamping tool so you can measure all angles of cut, rake, and all desired dimensions.

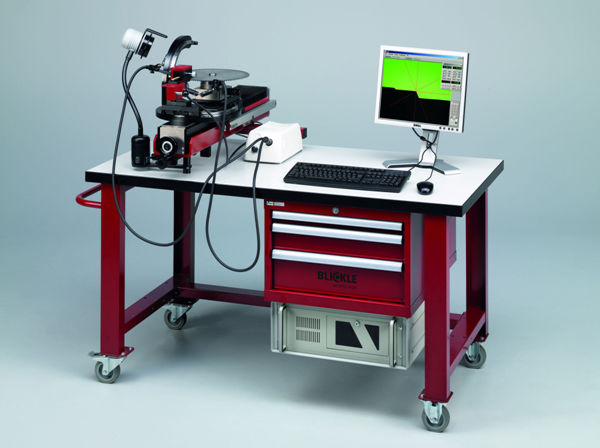

The measuring system - Mounted on a marble of a very high quality - consists of a digital camera, a precision cross table, including rapid positioning on the X axis and a measurement system Incremental, a computer with measurement software tools 3.xx WMS and a tool holder. The tool holder is a magnetic plate with reduction rings interchangeable to suit the bore of the reamer to be measured.

Specifications
