Laser cutting, Laser machining

Perfect Laser Co.

  • Fiber laser cutting machine / metal / CNC / CE

PE-F200-3015

Article: 00072499

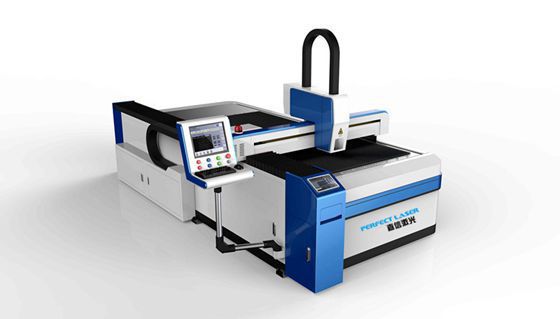

Fiber laser cutting machine / metal / CNC / CE

?Advantages
- Full power: Whatever you cut in the future, the Fiber provides everything you need

- The highest parts output and premium cutting quality right through to the high range of
sheet thicknesses

- A maximum degree of operating convenience and transparent process control thanks to the
intuitive ByVision Cutting user interface

- Unrestricted access to the cutting area from the machine?s long side

? Applied materials

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

? Product Features

Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.

? Advantages

1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.

2) High cutting speed: Cutting speed is more than 20m/min

3)Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency

5) Low cost & Low maintenance

Specifications

  • Technology: fiber laser
  • Treated material: metal
  • Control type: CNC
  • Other characteristics: CE
  • X travel: 1500 mm
  • Y travel: 3000 mm
  • Cutting speed: Min.: 5000 mm/min (3.28 in/s)
  • Laser power: 200 W (0.27 hp)
