PE-M700-6262

Article: 00072498

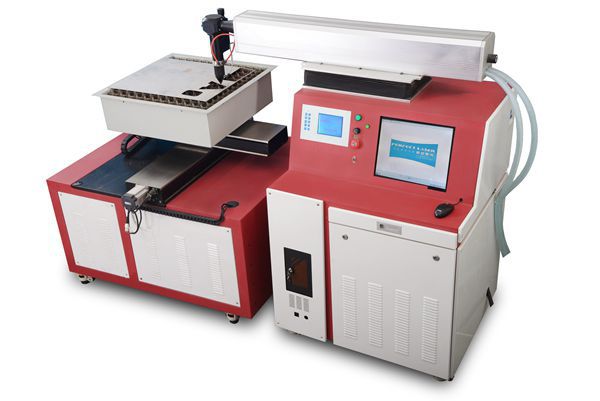

Laser cutting machine / metal / CNC / CE

Applied Field
such as: 8 mm carbon steel, 7 mm stainless steel and other metal materials, excellent processing for the various high-brittle hard alloys.
In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
Full compatibility with the CAD, CAXA software,
High-performance laser processing equipment with prospective broad application.

Parameters
Unit Type:PE-M700-6262
Actuating Medium:Nd+3?YAG
Input Power:16 KW
Max. Output Power:700 W
Single Impulse:100J
Laser Wavelength:1064 nm
Impulse Width:0.2?10 ms
Impulse Frequency:0?300 Hz
Max. Cutting Speed:0-50mm/s?1mm Stainless Steel?
Maximum Thickness:0.1-8 mm Carbon Steel 0.2-7 mm Stainless Steel
Cutting Area:620mm×620mm
Minimum Line Width:0.12~0.4 mm
Power Stability: Table Axial Positioning Accuracy:0.05 mm
Table-Driven System:Servo Motor Driver
Table Repeat Positioning Accuracy:0.02 mm

Product Features:
1. High accurate, non-contact cutting, applicable to the precise accessories cutting.
2. The machining materials is no distortion without the mechanical extrusion, and the materials have not chemic reaction as the small heat exchange.
3. Speedy, more than 100 times by the line cutting.
4. Stability and small heat-affected zone
5. Neat joint cutting, artistic, and no request of processing.
6. The machine has a great improvement----the entire optical system adopts an enclosed structure.
7. Equipped with the latest external water cooling system with very low running noise and high accuracy temperature regulator, providing a reliable guarantee for a long time running.

Specifications

  • Technology: YAG laser
  • Treated material: for thick sheet metal
  • Structure: bridge
  • Operation: electric
  • Associated function: hole punch
  • Applications: for metal sheets
  • Other characteristics: CE, high-speed, 1-spindle
  • X travel: 1300 mm
  • Y travel: 2500 mm
  • Laser power: 700 W (0.94 hp)
