Visual inspection machines, Video inspection machines

Optical Gaging Products

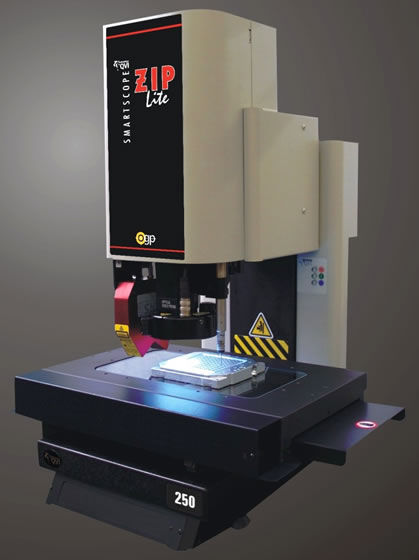

  • Video inspection machine / automatic

max. 300 x 150 x 150 mm | SmartScope ZIP Lite 250

Article: 00143286

Video inspection machine / automatic

SmartScope ZIP® Lite 250 offers a cost-effective way of getting the benefits of automatic video-based inspection and measurement, with the inclusion of advanced ZIP motorized zoom optics. This compact system provides an XYZ measurement volume of 250x150x150 mm, with an optional 300 mm extended X-axis. SmartScope ZIP Lite 250 features joystick controlled precision mechanical bearing motorized stages and 0.5 µm linear scales mounted to a metrologically stable granite base and column. Its precise 7:1 motorized zoom lens keeps images in focus and on-axis throughout its zoom range, while a wide array of optional lens attachments and adapter tubes expand the magnification range, providing further value and versatility. LED coaxial and profile illumination combine with the patented white-LED SmartRing? programmable ring light to provide lighting adaptable to a variety of measurement conditions. SmartScope ZIP Lite 250 also provides multisensor touch probe or DRS? laser support.

Specifications

  • Technology: video, automatic
