matec 30 PB

Article: 00144784

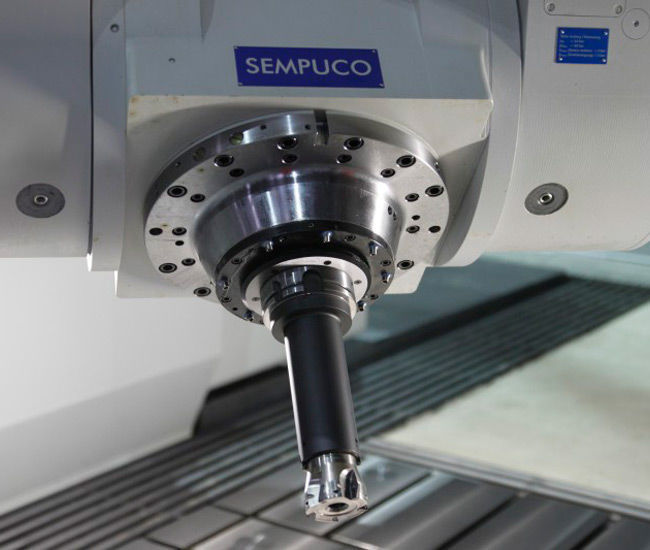

CNC machining center / 5-axis / vertical / gantry type

The design of the gantry machines is focused on achieving a small footprint, high stability and the maximum possible
performance. One of the most important elements for stability and precision is the special design of the gantry beam
with its disproportionately large cross-section. The unique stiffness of the machine ensures maximum contour fidelity
and surface quality on the workpiece. 3-D molds, large-scale and high-volume parts can be machined with appropriate
process optimization so as to save both time and money.

The applications of these extraordinary gantries are primarily within tool and die making, making the machines
particularly suitable for all types of materials such as plastics, nonferrous metals or steel.

In order to ensure maximum precision for the requirement in question and with absolute positioning accuracy, two
performance classes are offered for the three gantry series. SK 40/ HSK 63 for the matec-30 P, and SK 50/ HSK 100
for the matec-40 P and the matec-50 P.

Specifications

  • Control type: CNC
  • Number of axes: 5-axis
  • Spindle orientation: vertical
  • Structure: gantry type
  • Other characteristics: high-volume
  • X travel: Min.: 3000 mm
  • Y travel: Min.: 3800 mm
  • Z travel: 1800 mm, 1500 mm
  • Rotational speed: Min.: 9000 rpm (56548.67 rad.min-1)
  • Power: 30 kW (40.23 hp), 16 kW (21.46 hp)
