VCENTER-X800

Article: 00144923

CNC machining center / 5-axis / vertical / with rotary table

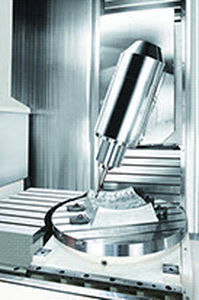

Swivel head (B-axis) and rotary table (C-axis) facilitate 5-axis
machining of large parts, up to 1000mm in diameter.
C-axis table is clamped at high torque 3433 Nm for heavy cutting.
The B-axis swivel head includes a Hirth coupling with 1°
increm ent further enhancing the rigidity, and 4+1 axis machining
capability.
BBT-40 spindle 15000rpm (22kW)

Specifications

  • Control type: CNC
  • Number of axes: 5-axis
  • Spindle orientation: vertical
  • Structure: with rotary table
  • X travel: 1600 mm
  • Y travel: 700 mm
  • Z travel: 1000 mm, 600 mm
  • Rotational speed: 15000 rpm (94247.78 rad.min-1)
  • Power: Min.: 15 kW (20.12 hp)
