Vibrating level switch / for liquids

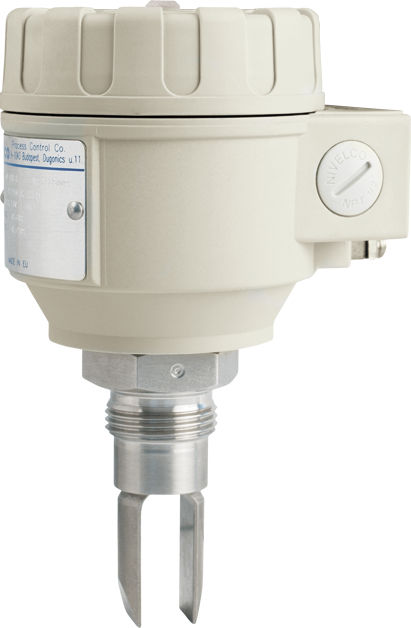

NIVOSWITCH for liquids - (Compact Vibrating Fork) : LEVEL SWITCHES


The NIVOSWITCH compact vibrating fork level switches with parallel vibrating fork are suitable for for level detection of liquids. Mounted on silos, tanks or hopper bins it can control filling / emptying, also can generate fail-safe alarms providing overfill or dry run protection. The operation principle is based on that the electronic circuit excites a vibration in the fork probe. When the medium reaches and covers the fork, its vibration stops, when the medium leaves the fork it returns to vibrate freely. The electronics senses the change of vibration and gives output signal after a selected delay. The plastic coated version is recommended to use for aggressive mediums, the highly polished version is recommended to use for abrasive mediums.


* Compact unit with 1 or 2 relay output
* No moving parts
* Self-cleaning for most media
* High immunity against vibrations
* Stainless steel and coated (PFA) probes
* BSP/NPT, Sanitary or Flanged process connections
* Solid rod extension up to 3 m
* Various output configurations
* High or low fail-safe mode
* Plastic or aluminium housing
* IP67 protection


* Most liquids with min. 0.7 kg/dm3 density and max. 10,000 mm2/s viscosity
* Corrosive, thick, turbulent, flowing liquids


* Marine approval: Germanischer Lloyd (GL)


  • Technology: vibrating
  • Measured material: for liquids
